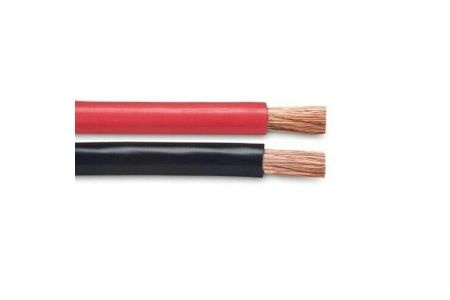

0.75mm Thin Wall Automotive cable, ideal for use in 12v, 24v automotive applications - 50 Meter Reel - TW75-50
£10.34
0.75mm² – 14 Amps Thin Wall Auto is a low voltage cable, ideal for use in automotive applications where its reduced insulation thickness and higher current carrying capacity both help to greatly reduce weight and volume in use. This is particularly important where space and weight are at a premium. The cable’s are lead free, PVC polymer, hard grade insulation also offer excellent resistance to petrol, chemicals and abrasion, and has a wide working temperature range to 105°C
- Part No. - TW75-50
| Voltage rating | suitable for 12V & 24V systems (60V max.) |
| Nominal current rating | 14A |
| Maximum loading | 168W@12V, 336W@24V |
| No./size of conductors | 24/0.20mm |
| Conductor cross section | 0.75mm² |
| Maximum overall cable diameter | 1.75mm |
| Resistance per m at 20°C | 0.0247 & |
| Conductor material | Plain copper |
| Insulation material | PVC (hard grade) |
| Working temperature range | -40°C to +105°C (with brief excursions up to +120°C) |
