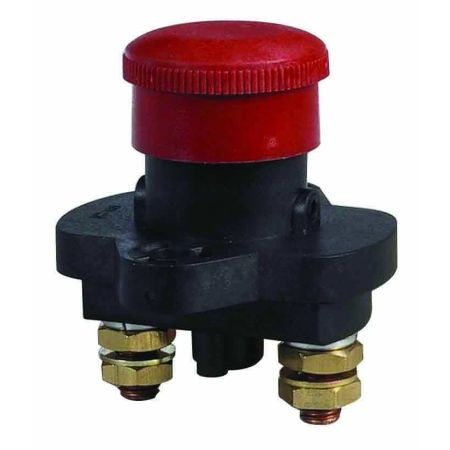

Emergency Push-Button Battery Isolator - 150A 48V
£77.05
Emergency Push-Button Battery Isolator - 150A 48V
Emergency push button battery isolator.
Turn button 45° to switch on, push to disconnect.
Rated 150 amps at 48 volts and 1000 amps for 10 seconds.
M8 studs and requires 41mm hole. Protected to IP66.
- Part No. - 0-605-40
| Nominal Tension 48V Max. | |
| Nominal Load Continuous Operation 150A | |
| High Load | |
| Protection Degree | |
| 1000A for 10 seconds | |
| IP66 (IEC529) | |
| Operating Temperature -30 ºC to +85 ºC | |
| Terminal Contacts Copper Double Cut | |
| Terminal Nuts Brass M8 | |
| Tightening Torque 0.9± 0.1 Nm | |
| Certificate N/A |
